Traverser

Posted: Sat 14. Apr 2018, 16:40
by FatController
Hi
As part of a layout I would like to add a 4 road rectangular traverser as my 'fiddle' yard.
I can't see any way to do this, or am I missing something?

Re: Traverser

Posted: Sun 15. Apr 2018, 08:23
by RailModeller Support
Hi there,

could you add a picture or a link to a similar configuration to clarify?

thanks,
Jan

Re: Traverser

Posted: Mon 16. Apr 2018, 21:11
by FatController

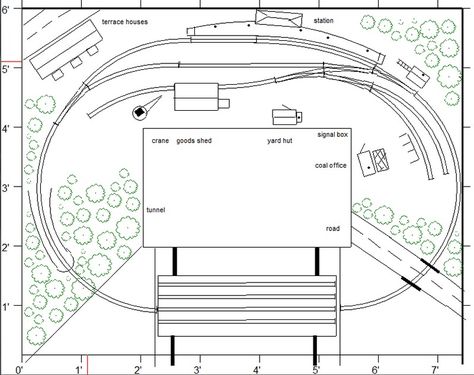

Something like this is what I have in mind

Re: Traverser

Posted: Tue 17. Apr 2018, 14:33
by RailModeller Support
I see - thanks for clarifying!

There are many transfer tables for various manufacturers included in either the dedicated track libraries for the specific track system or in the 'Various turntables' libraries for each model scale, usually when the vendor only produces transfer tables/turntables as a third party accessory and doesn't offer an entire track system.

Let me know if there's any specific transfer table you're missing!

Thanks,
Jan

Re: Traverser

Posted: Sat 21. Apr 2018, 13:46
by FatController
Hi Jan
There aren't any transfer tables / turn tables that fit what I am trying to achieve.
Most of the traverser set ups are from one line to multiple lines, like my picture. There is nothing trace libraries that match.
To be honest I didn't think there would be but thought there may be an easy way of creating one like there is for tunnels.
The only way I can see to show one is to insert the track, copy it a few times and then draw the rest in the drawing tools. A bit crude and time consuming but at least I'll understand the plan
Andy

Re: Traverser

Posted: Wed 25. Apr 2018, 15:42
by RailModeller Support
FatController wrote:The only way I can see to show one is to insert the track, copy it a few times and then draw the rest in the drawing tools. A bit crude and time consuming but at least I'll understand the plan

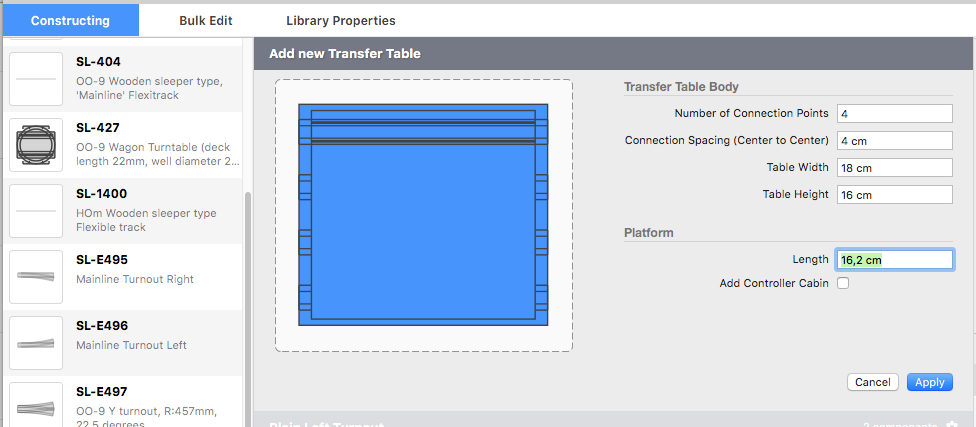

Yes.. the new Library Editor module has functionality to create transfer tables of any desired shape but unfortunately it wont be available until later this year.
I've made a note to extend it in order to also support traversers of the one-to-multiple-lines flavour.

Thanks,
Jan

Re: Traverser

Posted: Fri 27. Apr 2018, 19:52
by FatController
Thanks. I’ll look out for the feature
Andy
